Laser Engraver M10W
Model |
M10W |
---|---|
Machine Weight |
6.5kg |
Machine Size |
552*624*260mm |
Engraving Accuracy |
0.1mm |
Engraving Speed |
10000mm/min |
Engraving Size |
450mm*450mm |

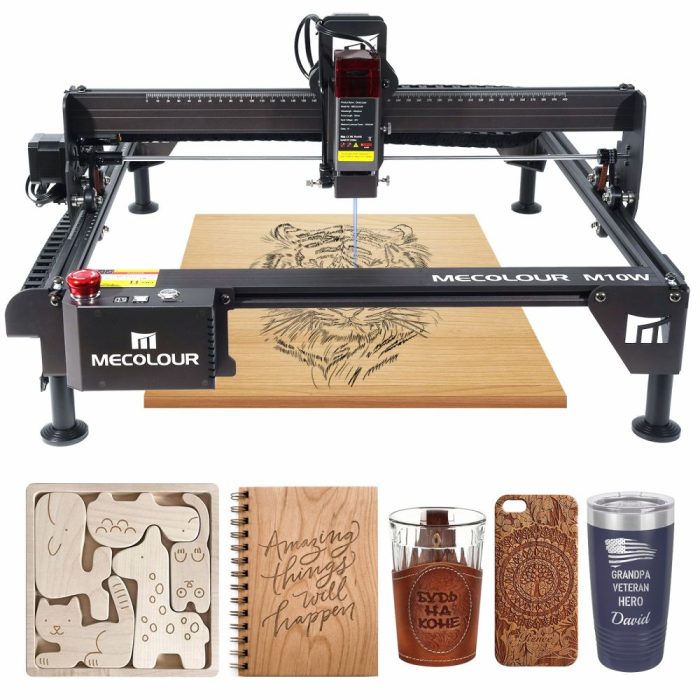

Our laser engraving machine is versatile and efficient, ideal for a wide variety of applications. Designed to engrave on multiple materials, this tool can work with wood, plastic, paper, leather, bamboo, sponge paper, alumina, stainless steel, chevron, acrylic, glass and much more.
With its precision technology, it allows you to create intricate and personalized designs with ease. Whether for craft projects, product customization or large-scale production, this laser engraver machine adapts to your needs. Its user-friendly interface and advanced capabilities guarantee high-quality results, bringing your creative ideas to reality.
Parameters
Model: M10W
Machine Weight: 6.5kg
Machine Size: 552*624*260mm
Engraving Accuracy: 0.1mm
Engraving Speed: 10000mm/min
Engraving Size: 450mm*450mm
Laser Wavelength: 445±5nm
Laser Power: 10000mW
Electrical Requirement: 24V 4A DC
Motherboard: DLC ESP32(32bit)
Engraving Materials: Wood, Plastic, Paper, Leather, Bamboo, Sponge Paper, Alumina, Stainless Steel, Chevron, Acrylic, Glass, etc.
Engraving Mode: Image, carving/Text carving/Scanning carving/Contour carving/Pixel carvingFile Format: NC, DXF, BMP, JPG, PNG, GCODE
Engraving Method: USB Cable \ APP \ Web Application on Wireless Computer \ Touch Screen(Optional)
Supported Software: LaserGRBL (Windows), Lightburn (Universal)
Software Support Languages: Chinese. English. Italian. French. German
Power Type: National Standard/European Standard/American Standard (Optional) USA/EU Plug
Working Environment: RH Temperature 5-40℃, Humidity 20-60%RH

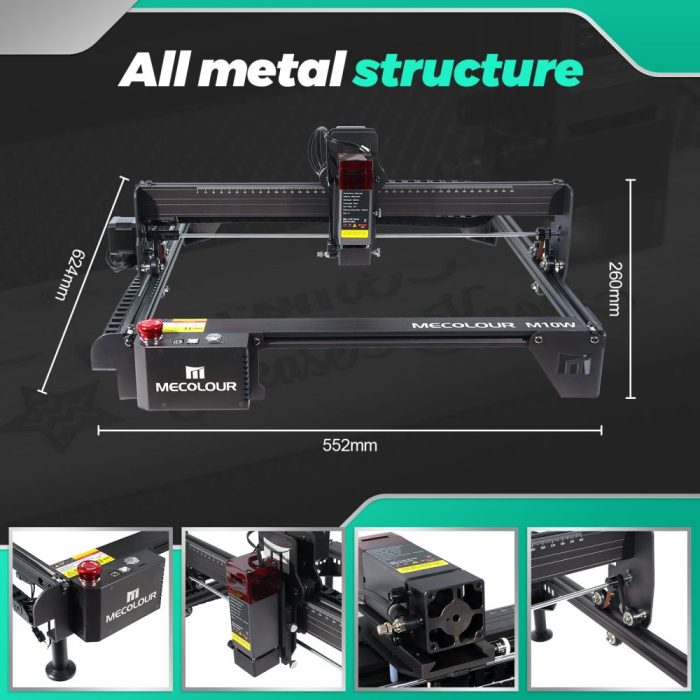

Simple and safe wiring performance: Wiring above hard pipe, simple and safe
Main Board: ESP32 has WiFi function, supports offline operation of mobile APP and PC, online USB operation, active safety and fire protection function. (Usage scenario)
Features
- Cutting area 400 by 400mili meter;
- XY drag chain: You can see it is very convenient for wire harness management,keep the wires no knot;
- X-axis 2040 profiles parts(this one): the trolley is more stable and firm when moving at high speed,it means the machine will not easily shake during operation, and the engraving precision will be better;
- ESP32 main controller: It can support WIFI, wireless APP, USB, offline and other different ways of engraving;
- Emergency stop switch: (Look)Press it lightly and it will quickly to stop the machine in time to prevent accidents;
- If the machine moves abnormally and remains still for 10 seconds, the laser will automatically stop emitting light to prevent the object from overheating and catching fire;
- The air pipe is reserved for quick external air pump connection;
- XY axis limiter, effective control stroke, precise positioning.
How to use Mecolour laser engraving machine?
Software helps you create:
App control
WIFI connection
USB connection
Offline use
